ARAK AIR
INFO PRODOTTO
Ultra versatile. Ultralight.
ultralight multitool – LTF09: B | EN: B
Descrizione
The ARAK is the most versatile glider in our model range and has made a name for itself as a real “multi-tool”: The ARAK is easy to handle and immediately inspires confidence. Its performance enables flights beyond the 300 km mark and its handling invites playful flying of any kind. The special edition of our multitool brings all these features to an ultra-lightweight level: The ARAK AIR combines the concept of the ARAK with the technology of our X-ALPS wings! At only 2.9 kg, the ARAK AIR’s weight is not only reduced by 30%, its packing size is also considerably smaller, so the ultralight glider fits into even the smallest backpack. This exclusive combination makes the ARAK AIR the perfect glider for all pilots who like to fly X-Alps-style and who want to rely on the passive safety of an intermediate glider.
Specifiche Tecniche
| Size | XXS | XS | S | M | L |
| Cells | 57 | 57 | 57 | 57 | 57 |
| Area flat (m²) | 21,4 | 23,3 | 24,8 | 26,4 | 28,6 |
| Area projected (m²) | 18,3 | 20,0 | 21,3 | 22,6 | 24,5 |
| Wingspan flat (m) | 10,75 | 11,22 | 11,58 | 11,94 | 12,42 |
| Wingspan projected (m) | 8,60 | 8,98 | 9,26 | 9,55 | 9,93 |
| Aspect ratio flat | 5,40 | 5,40 | 5,40 | 5,40 | 5,40 |
| Aspect ratio projected | 4,03 | 4,03 | 4,03 | 4,03 | 4,03 |
| min. profile depth (cm) | 58 | 61 | 63 | 65 | 67 |
| max. profile depth (cm) | 242 | 253 | 261 | 269 | 280 |
| Glider weight* (kg) with Dyneema-Riser. Weight with Regular-Riser apprx. +200g |
2,9 | 3,1 | 3,3 | 3,5 | 3,7 |
| Recommended certified weight range (kg) | 55-75 | 70-85 | 80-95 | 90-105 | 100-120 |
| Certified weight range (kg) | 50-80 | 65-90 | 75-100 | 85-110 | 95-120 |
| Homologation | LTF/EN: B | LTF/EN: B | LTF/EN: B | LTF/EN: B | LTF/EN: B |
Colori Disponibili
 |
 |

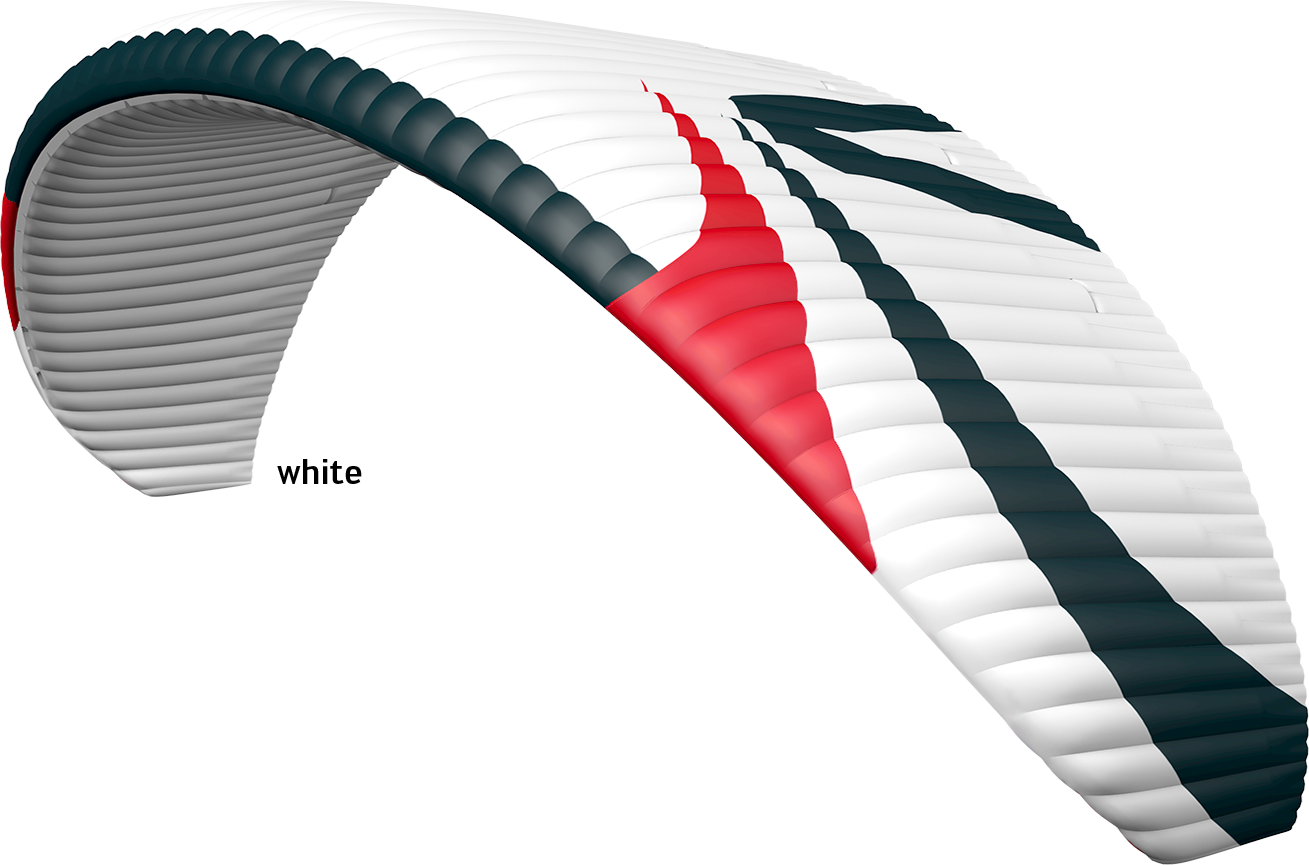

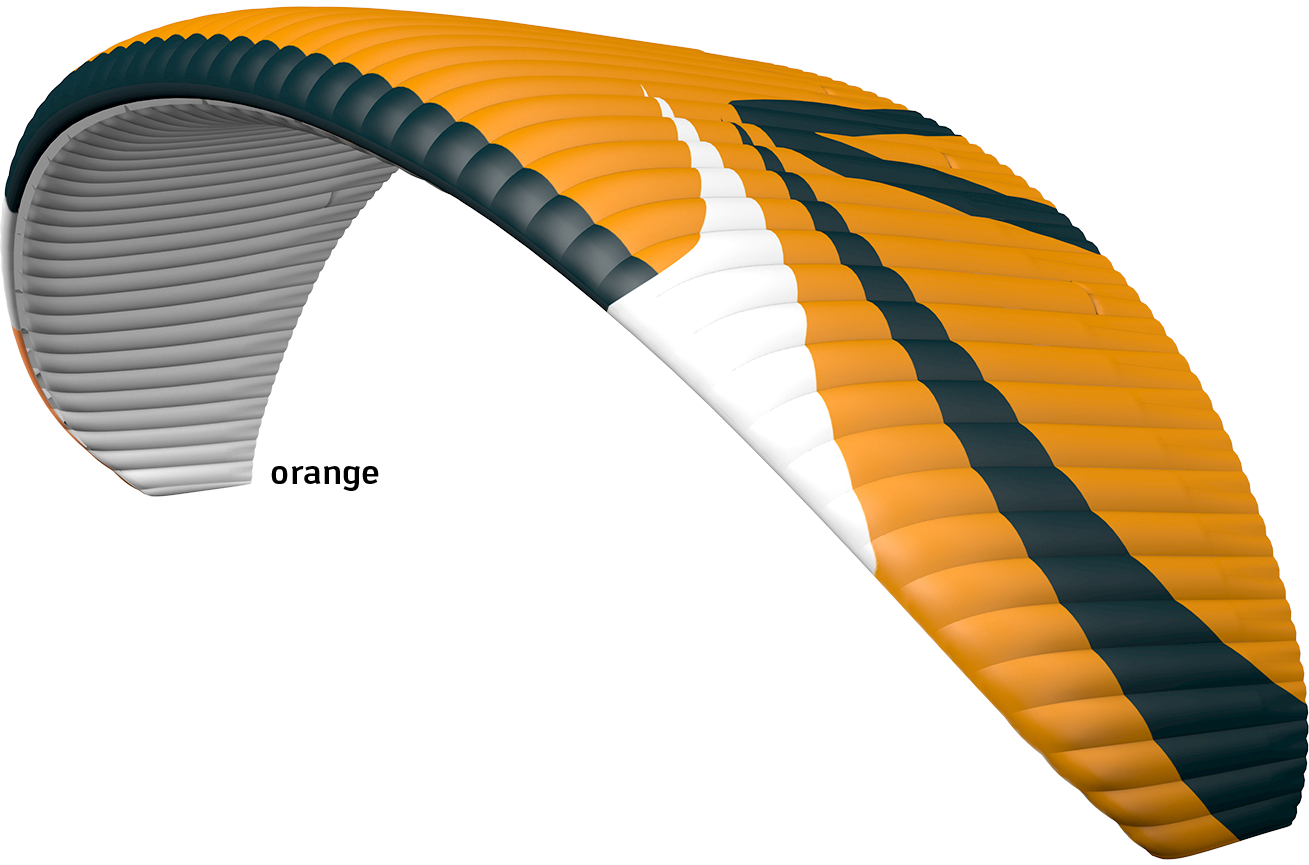

| white | orange |
